Model No: TSV

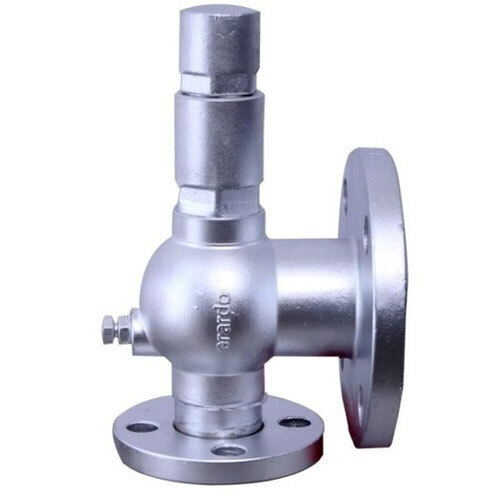

ERARDO make Thermal Safety Valve / Thermal Relief Valve Angle Discharge, Spring Loaded, Full Lift, Semi Nozzle, Full Nozzle, Conventional type Flange End Pressure / Safety Relief Valve with Open Bonnet, Open (bolted) Cap & Plain Lever.
| Specification | Details |
| Manufacturing & Testing Standard | API 520 / 526 / 527 |
| Sizes | 0.5 inch to 2 inch |
| Body Construction | A216 Gr. WCB, SS 304, SS 316 |
| End Connection | ANSI 150#, ANSI 300#, ANSI 600# |
Era Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Safety Pressure Relief Valves are manufactured with high accuracy to assure the performance of the valve protect critical expensive equipments from dangerously high pressure
Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya
We are Design Manufactured Tested as per API Standard
- Sizing SelectionSTD API 520 Part1
- Design DimensionAPI 526
- Testing STDAPI 527
- Pressure Temperature RatingANSI B1634
- Flange RatingANSI B165 BS DIN
Special Features
- All design options and the various effects of system conditions backpressure etc have been checked on inhouse in accordance with API standard
- Maintenance easier cost effective Replacement of Parts will be easy
- Castings forgings raw material are made from ASTM ASME specifications A variety of materials are offered including non ferrous for low pressure temperature as well as stellited seating surfaces for high pressure temperature and PTFE Lined with CFTGFT trims for chemical and process industries
- Selection of nozzle and disc materials with precise lapping gives positive shutoff complies with relevant standard and prevents loss of flow media
- Performance under difficult back pressure conditions
- Body of Safety valve is Invest Casting upto 15
- Model No TSV
- Pressure rating upto 900 Class
- MOC A216 Gr WCB SS 304 SS 316 and super alloy steel and PTFE Lined
- Type Conventional Metal to Metal Soft Seated
- Pressure Limits 120 Barg
- End Connection Flanged or Threaded MF
FAQs of Thermal Relief Valve
Q What is the temperature range of the Thermal Relief Valve
A The temperature range of the Thermal Relief Valve is 20 to 500 Celsius oC
Q What is the application of the Thermal Relief Valve
A The Thermal Relief Valve is commonly used for Oil Gas Chemical and Pharmaceutical applications
Q What is the weight of the Thermal Relief Valve
A The weight of the Thermal Relief Valve is 5 kilograms kg
Q What is the disc material of the Thermal Relief Valve
A The disc material of the Thermal Relief Valve is SS 316
Q What is the type of the Thermal Relief Valve
A The Thermal Relief Valve is a Relief Valve
Superior Thermal Protection for Critical SystemsThis valve provides essential thermal expansion relief for piping and hydraulic setups, protecting equipment from overpressure due to heat. Its corrosion-resistant stainless steel body and precision soft seat ensure long service life and steadfast sealing over a wide temperature range. Both installation and maintenance are straightforward, thanks to a user-friendly compact design and threaded connections.
Versatile Mounting and Reliable PerformanceSuitable for any mounting orientation, the valve's robust construction and adaptable pressure settings make it ideal for diverse industrial scenarios. Its spring-loaded mechanism responds rapidly to pressure changes, ensuring consistent operation and safeguarding system integrity under varying thermal loads.
FAQ's of Thermal Relief Valve:
Q: How does the thermal relief valve provide protection in piping systems?
A: The valve safeguards piping and hydraulic installations by automatically relieving excess pressure caused by thermal expansion. This prevents potential damage to equipment and piping by releasing fluid when system pressure exceeds the preset limit.
Q: What type of fluids are compatible with this valve?
A: It is designed for use with water, oil, or other non-corrosive fluids, making it suitable for a wide range of industrial and hydraulic applications.
Q: When should I adjust the set pressure of the valve?
A: You may need to adjust the set pressure within the 6-12 Bar range if your system's operating requirements change. This ensures precise protection based on specific process or safety needs.
Q: Where can this thermal relief valve be installed?
A: Thanks to its flexible design, it can be mounted in any orientation on 1/4 NPT threaded pipelines, providing versatility for tight or unconventional installation spaces.
Q: What is the process for installing the valve?
A: Installation involves threading the valve onto compatible pipeline connections, ensuring the direction of discharge aligns with safety protocols. No special tools or electrical power are needed for setup or operation.
Q: What benefits does the soft seat sealing (PTFE/Viton) provide?
A: The soft seat design delivers excellent leak resistance, even at higher temperatures and pressures, prolonging the valve's service life and minimizing maintenance needs.
Q: Can this valve operate in high-temperature environments?
A: Yes, it is built to handle fluid temperatures up to 120C (248F), making it effective for thermal protection in environments prone to significant heat build-up.
