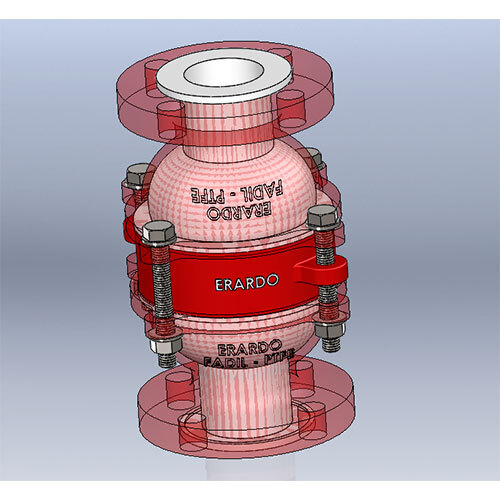

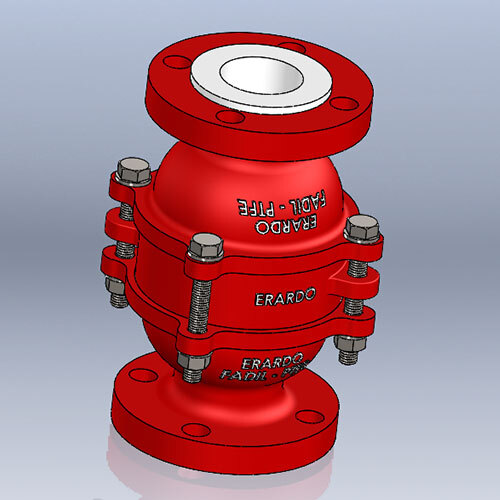

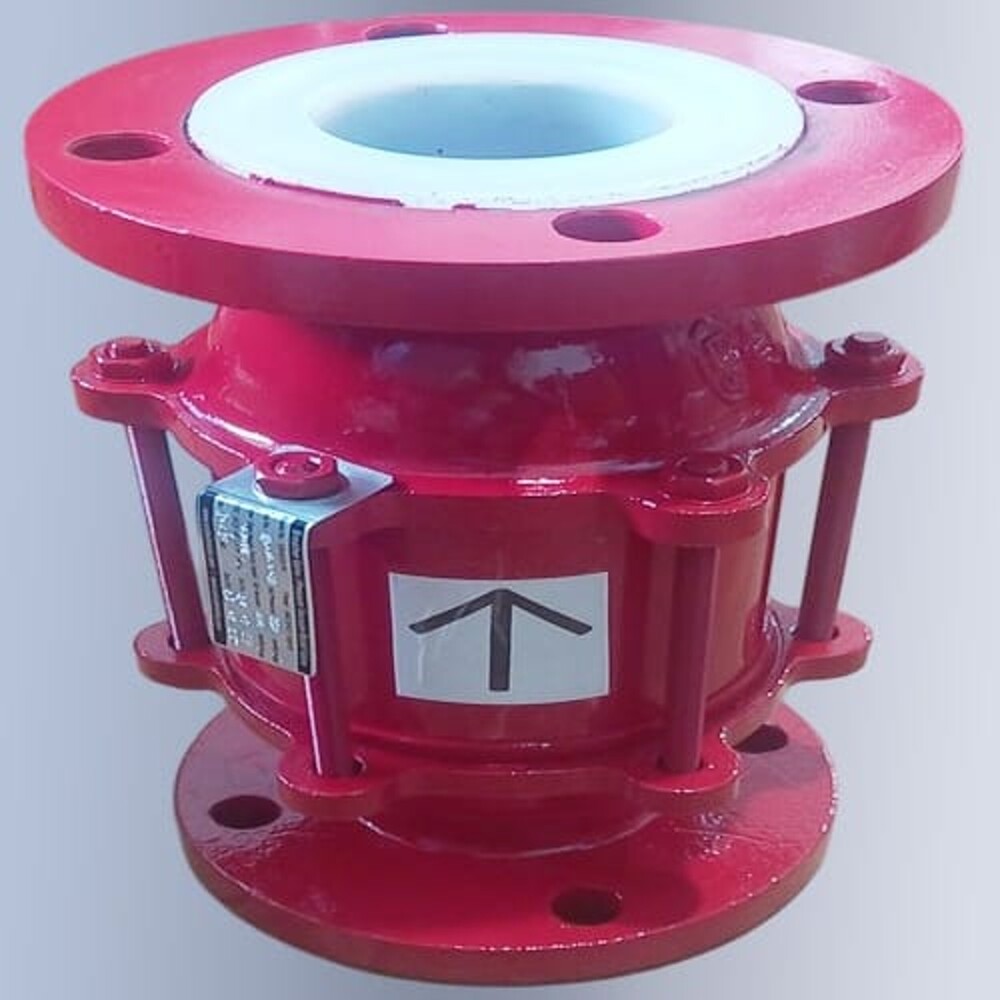

Model No: FADIL-PTFE / FADEL-PTFE
ERARDO make End of Line / Inline PTFE Lined Flame Arrester or Halar Coated Flame Arrester are used in Highly Corrosive Environment where vapours are highly corrosive. The Flame Element usually used in this Environment are PTFE, SS 316 Ti, Hastelloy C.
| Specification | Details |
| Manufacturing Standard | API 2000 7th Edition |
| Testing Standard | ISO 16852, IS 11006, BS 7244, EN 12874, IS 16485 |
| Sizes | 0.5 inch to 24 inch |
| Body Construction | A216 Gr. WCB + PTFE Lined, SS 304 + PTFE Lined (A351 Gr. CF8), SS 316 + PTFE Lined (A351 Gr. CF8M), A216 Gr. WCB + Halar Coated, A216 Gr. WCB + PTFE Coated (As per customer requirement) |
| End Connection | BSP (Male/Female), NPT |
| Gas Group | IIA, IIB, IIC |
Era Technologies is Prime Indian Manufacturer & Exporter of Erardo Make PTFE Lined Flame Arrester is used in Corrosive Environment.Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya
FAQs of PTFE Lined Flame Arrester:
Q: What is the primary usage of the PTFE Lined Flame Arrester?
A: The primary usage of the PTFE Lined Flame Arrester is in industries such as Oil, Gas, and Chemical sectors.
Q: What applications is the PTFE Lined Flame Arrester suitable for?
A: The PTFE Lined Flame Arrester is suitable for applications in Chemical, Agro Chemical, and Chemical industries.
Q: What is the material used for lining in the PTFE Lined Flame Arrester?
A: The PTFE Lined Flame Arrester is manufactured using PTFE lining material.
Q: What is the weight of the PTFE Lined Flame Arrester?
A: The PTFE Lined Flame Arrester weighs 15 kilograms (kg).
Q: Does the PTFE Lined Flame Arrester come with any warranty?
A: No, the PTFE Lined Flame Arrester does not come with any warranty.
Exceptional Chemical and Corrosion ResistanceThe internal PTFE lining dramatically elevates the flame arrester's resistance to chemical attack, making it ideal for applications involving aggressive process media. This specialized coating prolongs the equipment's lifespan and ensures superior operational reliability in demanding environments.
Flexible Installation and Wide CompatibilityDesigned for versatility, the PTFE Lined Flame Arrester can be mounted horizontally or vertically and suits flanged or screwed pipeline systems. It fits pipeline diameters from 25 mm to 300 mm with various standard end connections (ANSI/ASME/BS/DIN), ensuring seamless integration into existing setups.
Removable Element for Effortless MaintenanceRoutine maintenance is simplified by the easily removable flame arrestor element. This design enables quick inspection and cleaning, reducing downtime and ensuring consistent safety and performance in PTFE-lined pipeline operations.
FAQ's of PTFE Lined Flame Arrester:
Q: How does the PTFE lining enhance the flame arrester's performance?
A: The PTFE lining provides exceptional chemical and corrosion resistance, protecting the metal body and flame cell from aggressive substances in the pipeline. This extends the life of the flame arrester and ensures reliable operation in harsh process environments.
Q: What is the process for maintaining or cleaning the flame arrestor?
A: The arrester features a removable element, allowing safe and efficient disassembly for inspection or cleaning. Simply unbolt the flanged connections, withdraw the element, clean as needed, and reinstall-minimizing downtime and ensuring continued protection.
Q: When should the flame arrestor be inspected or serviced?
A: It is recommended to follow a routine inspection schedule based on process conditions and frequency of use. Regularly check for blockages, accumulated debris, or damage to the PTFE lining, especially after any suspected flame events or process upsets.
Q: Where is this flame arrester typically installed?
A: This flame arrester is installed inline within PTFE-lined piping systems that handle flammable or corrosive gases and vapors. It is suitable for chemical plants, pharmaceutical operations, and other industries requiring flame protection in PTFE-lined infrastructure.
Q: What benefits does the PTFE Lined Flame Arrester offer compared to standard arresters?
A: Compared to standard models, the PTFE-lined version provides superior corrosion protection and chemical compatibility, significantly enhancing the safety and longevity of flame arresters in aggressive service conditions. This makes it an optimal choice for challenging industrial applications.
Q: Can the flame arrester be used with both horizontal and vertical pipelines?
A: Yes, the design supports both horizontal and vertical inline installation, giving operators flexibility to match the specific layout and requirements of their process piping.
