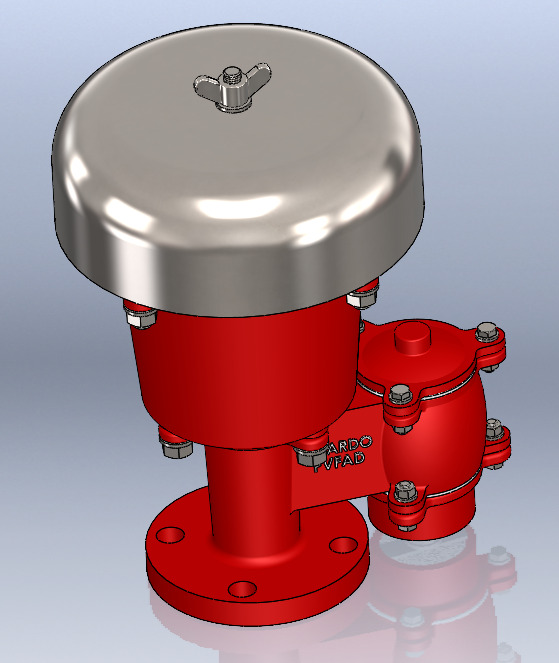

Model No: PVFAD

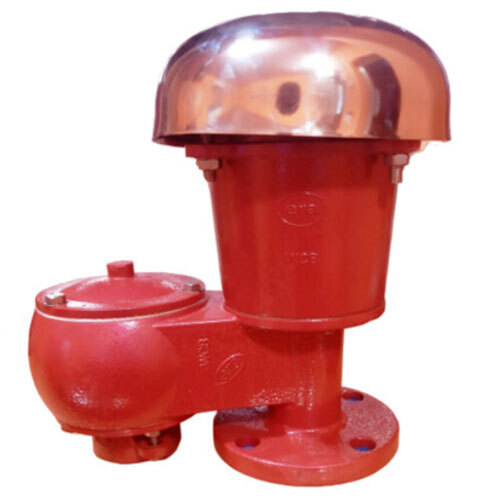

ERARDO make breather valve with Flame Arrester / Breather valve cum Flame Arrester are dead weight loaded & End of Line type. This model used where vapor release in to the atmosphere.
| Specification | Details |
| Manufacturing Standard | API 2000 7th Edition |
| Testing Standard | API 2000 7th Edition, API 2521 |
| Sizes | 1 inch to 24 Inch |
| Body Construction | Carbon Steel, SS 304, SS 316, Aluminium |
| End Connection | ANSI 150#, API 650 (As per Customer Requirement) |
Era Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Pressure Vacuum relief valves Breather valve is special designed for tank protection The range includes pressure only vacuum only and combined pressure vacuum valves all available with Flanged outlets or vented to atmosphere
Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya
Pressure vacuum relief valve is used extensively on bulk storage tanks including fixed roof with floating covers to minimize evaporation loss The valves prevent the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel
Storage tanks other vessels containing flammable and explosive chemicals and mixture are prevalent in chemical process industries plants Flame Arrester are installed with Breather Valve to prevent potential hazard associated with flammable and explosives materials
Special Features

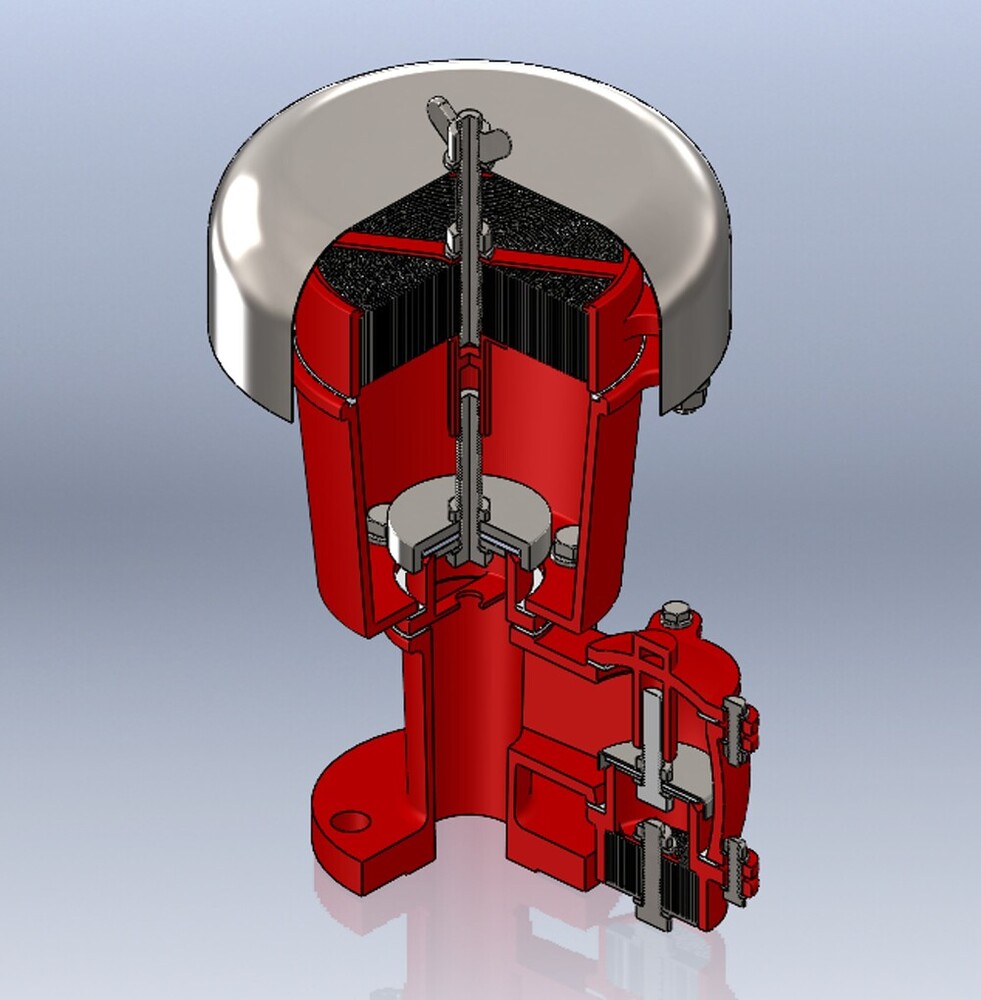

- Design of Breather Valve with integrated Flame Arrester such that it gives Maximum Flow low pressure Drop Fire Safe Flame Element size will be 15 times than BV Size It will nullify pressure drop which will occur due to Flame Element
- Easy cleaning less clogging and less Maintenance Cleaning can be done by removing Wing Nut
- Flouropolymer coated Body and hardware are provided for outstanding corrosion and chemical resistance
- Low BlowDown
- Low Leakage and reduced vapor loss
- Dead Weight design such that set PressureVacumm can be changed as per need
- Vacuum port area 1 dot 3 times higher than PV size By this we increased in breathing flow by 30 of required flow
Model No BVFAD
- Pressure Vacuum side Flame Element Dia 1 dot 5 times of breather Valve Size Hence there is no Flow restriction and Pressure Drop
- Both side Flame Element are installed at outer side of Breather Valve Hence Maintenance and cleaning will be easy
- There will be no direct contact with Vapors because of this the life of Flame element increase
- There will be no blocking as Flame element contact with vapors at the time of Pressure condition
- During Fire the Flame element directly contact with Flame Hence Tank will be Safe in Fire or explosion
FAQs of Breather Valve cum Flame Arrester:
Q: What is the function of Breather Valve cum Flame Arrester?
A: Breather Valve cum Flame Arrester is designed to protect tanks, pipelines, and other vessels from dangerous overpressure and vacuum conditions caused by changes in temperature and/or volume.
Q: What kind of media can be processed using this product?
A: Breather Valve cum Flame Arrester can be used for water, gas, oil, and other liquid and gaseous media in various industries like Oil, Gas, Chemical, Pharmaceutical.
Q: What is the temperature range that this product can handle?
A: Breather Valve cum Flame Arrester can work in a temperature range of -20 to 100 Celsius (oC).
Q: What is the maximum size range available for this product?
A: Breather Valve cum Flame Arrester is available in sizes ranging from 25 to 600.
Q: What is the type of Breather Valve cum Flame Arrester?
A: Breather Valve cum Flame Arrester is a Dead Weight type valve that works manually.
Q: What is the color of Breather Valve cum Flame Arrester?
A: Breather Valve cum Flame Arrester comes in red color.
Q: What is the weight of Breather Valve cum Flame Arrester?
A: Breather Valve cum Flame Arrester weighs around 10 Kilograms (kg).
Exceptional Flame and Overpressure ProtectionWith a stainless steel crimped ribbon flame element, the breather valve cum flame arrester delivers both pressure-vacuum relief and outstanding flame arresting capabilities. Its integrated design defends against flashbacks or atmospheric explosions, making it ideal for chemical, petroleum, and solvents industries where hazardous vapors are present.
Maintenance-Friendly and Customizable DesignThe unit is engineered for straightforward inspection and cleaningsimply remove the flame arrester section for maintenance. The pressure/vacuum setting, body material, sealing type, and coatings are all customizable at the factory, tailored precisely to your operational specifications and process requirements.
Corrosion Resistance and Versatile ApplicationsConstructed from materials selected to maximize resistance to harsh chemicals and corrosion, this valve operates efficiently across temperature ranges from -20C to +60C. It ensures reliable venting and flame protection for storage tanks, vessels, and volatile liquid storage in varied industrial settings.
FAQs of Breather Valve cum Flame Arrester:
Q: How does the integrated flame arrester enhance safety in storage tanks or vessels?
A: The integrated flame arrester prevents flames or external ignition sources from entering the tank or vessel through vapor spaces, reducing the risk of explosions caused by flammable gases. Its stainless steel crimped ribbon design provides robust, passive protection without external power.
Q: What are the options for end connections and materials for this device?
A: You can specify flanged connections to ANSI or DIN standards, as well as threaded (Screwed/BSP/NPT) types. Body materials can be chosen from carbon steel, stainless steel, aluminum, or FRP, ensuring compatibility with various chemicals and process requirements.
Q: When should maintenance or inspection be performed on this breather valve cum flame arrester?
A: Periodic maintenance is recommended as per your plants schedule or operating conditions. The flame arrester module is designed for easy removal, facilitating quick access for cleaning or inspection and minimizing process downtime.
Q: Where is this product typically installed, and what is the mounting position?
A: This device is typically mounted vertically on the roof or vent nozzle of storage tanks, chemical vessels, or volatile liquid storage units to provide optimal venting and flame protection. Accessories such as weather hoods or bug screens can be added for outdoor installations.
Q: What is the process for setting the pressure or vacuum relief points?
A: Pressure or vacuum settings are factory-calibrated according to your specifications, ranging from 0.5 psi to 12 psi. Simply communicate your operational requirements during orderingthe unit arrives preset for your application.
Q: How does using this valve benefit operations in the chemical or petroleum industries?
A: This device provides reliable overpressure/vacuum relief, prevents hazardous flashbacks, and withstands corrosive environments, protecting equipment and staff. Its passive, maintenance-friendly design lowers risk and operational costs.
