Product Specification

Price	22000 INR
Unit of Measure	Piece/Pieces
Minimum Order Quantity	100
Unit of Price	Piece/Pieces
Valve Type	Pressure/Vacuum Relief Valve with Flame Arrester
Temperature	-20Â°C to +80Â°C (standard), higher on request
Valve Size	2 to 12
Features	In-built detonation/IIB & IIA Group flame arrester, low-maintenance, corrosion-resistant, weather hood
Media	Air, Vapours, Combustible Gases
Control System	Direct acting (spring/weight loaded)
Type	Pipe Away Breather Valve cum Flame Arrester
Material	Cast Iron, Carbon Steel, Stainless Steel, Aluminum
Port Size	2 to 12 (DN50 to DN300)
Structure	Body with integral flame arrester and breather valve
Sealing	Soft and Metal-to-Metal (PTFE/Gasket/Viton options)
Connection Type	Flanged as per ANSI/DIN
Application	Storage tanks, petrochemical, chemical, and pharmaceutical industries for venting and explosion protection
Power	Manual/Non-electric
Pressure	Set pressure typically 25mm to 500mm W.C. (water column)
Disc	Corrosion-resistant, SS316/SS304/Aluminum options

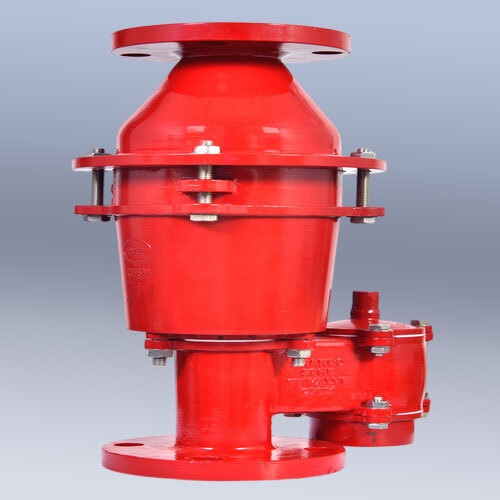

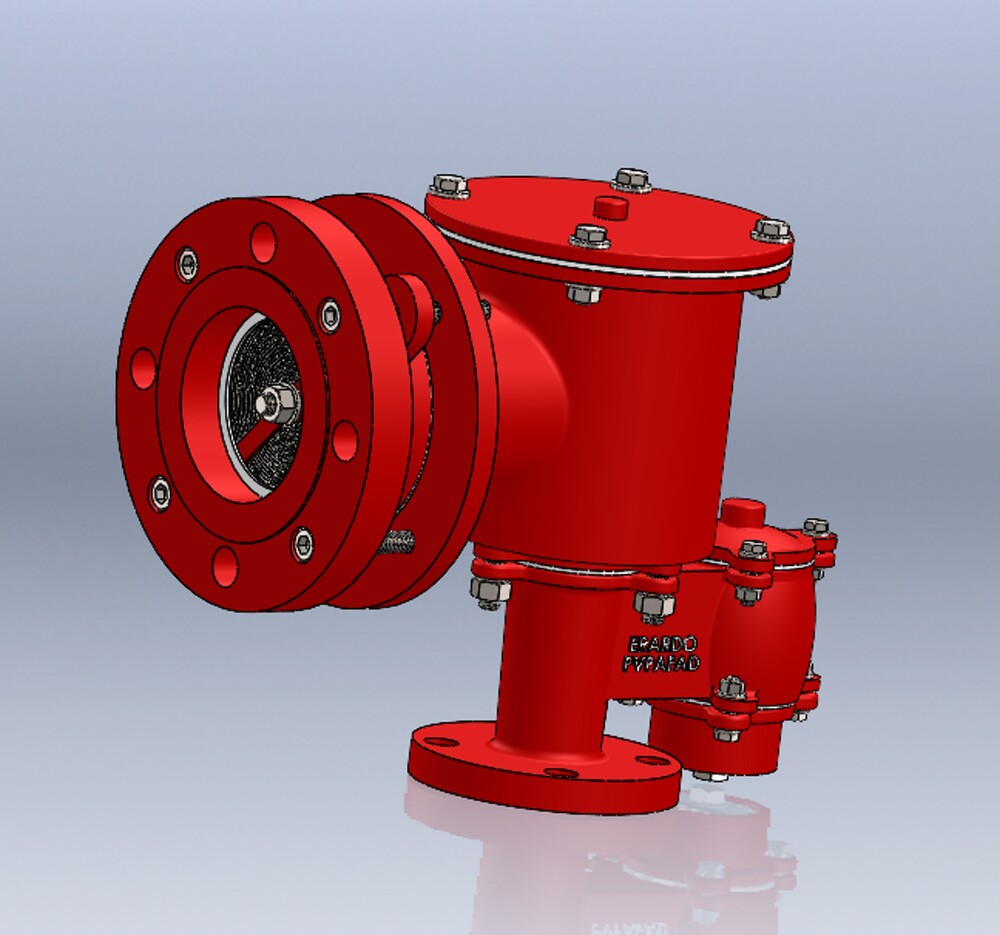

Breather valve cum Flame Arrester (Pipe Away)

Model No: PVPAFAD

ERARDO make breather valve with Flame Arrester / Breather valve cum Flame Arrester are dead weight loaded & Pipe away type. This model used where vapor should divert to safe location or scrubber.

Specification	Details
Manufacturing Standard	API 2000 7th Edition
Testing Standard	API 2000 7th Edition, API 2521
Sizes	1 inch to 24 inch
Body Construction	Carbon Steel, SS 304, SS 316, Aluminium
End Connection	ANSI 150#, API 650 (As per Customer Requirement)

Era Technologies is Prime Indian Manufacturer & Exporter of Erardo Make Breather valve with a flame arrester is a specialized safety device commonly used in industrial applications where the storage tanks or vessels contain flammable liquids or gases It combines the functions of a breather valve pressurevacuum relief with a flame arrester to provide additional protection against the risk of fire or explosion

Our world wide Presence in Malaysia, Singapore, Indonesia, Thailand, Vietnam, UAE, Saudi Arabia, Oman, Kuwait, Iran, Egypt, Yemen, Qatar, Bahrain, Turkey, Libya, Iraq, Syria, Algeria, Vietnam, Venezuela, Chile, Colombia, Nigeria, Kenya

Here is how it works

Breather Valve Functionality Similar to a pressure vacuum relief valve the breather valve component of this device opens to relieve excess pressure or vacuum inside the tank It prevents overpressure or vacuum conditions that could potentially lead to tank rupture or collapse

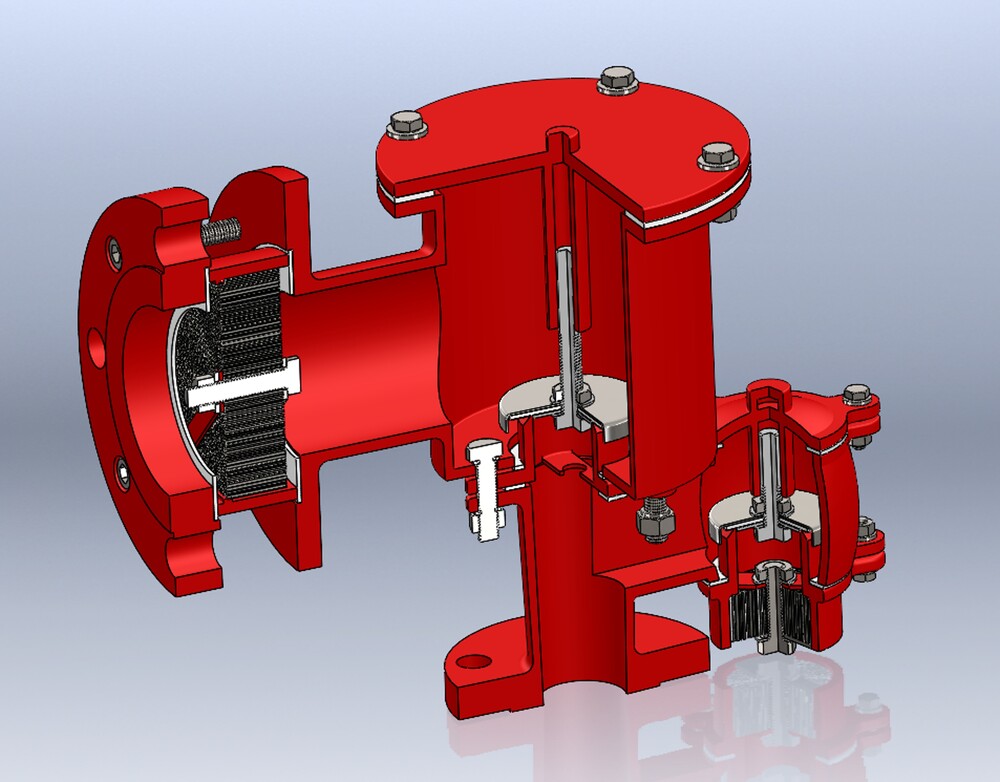

Flame Arrester The flame arrester is a critical safety feature designed to prevent the propagation of flames into the storage tank or vessel It consists of a mesh or perforated metal plate with narrow passages that disrupt the flame front causing it to extinguish before it can enter the tank and ignite the contents.

FAQs of Breather valve with Flame Arrester

Q What is the Breather valve with Flame Arrester made of

A The Breather valve with Flame Arrester is made of materials such as WCBSS304SS 316AL and Carbon Steel

Q What is the warranty period for the Breather valve with Flame Arrester

A The Breather valve with Flame Arrester comes with a warranty period of 12 months

Q What is the recommended application of the Breather valve with Flame Arrester

A The Breather valve with Flame Arrester is recommended for use in the Oil Gas Chemical industries

Q What is the size range of the Breather valve with Flame Arrester

A The Breather valve with Flame Arrester is available in sizes ranging from 1 to 24 inches

Q What is the working temperature range of the Breather valve with Flame Arrester

A The Breather valve with Flame Arrester is designed to work in low temperature environments

Reliable Venting and Explosion Protection

This breather valve cum flame arrester effectively vents excess pressure and minimizes vacuum conditions while preventing flame transmission, ensuring safe operation in storage tanks and process equipment. Its direct-acting control system, available in spring or weight-loaded options, delivers consistent and reliable protection against hazardous conditions.

Customizable and Corrosion-Resistant Construction

Built with materials like cast iron, carbon steel, stainless steel, or aluminum and coated with epoxy/polyurethane finishes, the valve offers exceptional corrosion resistance. Custom sizes and sealing options (PTFE, gasket, Viton) guarantee compatibility with a wide range of process requirements and harsh industrial environments.

Convenient Maintenance and Inspection

Designed for ease of servicing, this breather valve allows inspection and maintenance without removing the unit from the pipeline, reducing operational downtime. The low-maintenance structure with an in-built weather hood and corrosion-resistant components further extends lifecycle and assures consistent performance.

FAQ's of Breather valve cum Flame Arrester (Pipe Away):

Q: How does the Pipe Away Breather Valve cum Flame Arrester function in hazardous storage applications?

A: This device provides robust pressure and vacuum relief for storage tanks while incorporating a stainless steel flame arrester element to prevent flame propagation from external ignition sources. Its direct-acting mechanism ensures rapid response to pressure changes, offering dual protection against overpressure and explosion risks in chemical, petrochemical, and pharmaceutical industries.

Q: What makes this breather valve suitable for corrosive or outdoor environments?

A: The valve uses corrosion-resistant materials such as stainless steel, cast iron, or aluminum, and is protected by an epoxy/polyurethane coating. Combined with a weather hood and various sealing options, the unit withstands aggressive chemicals, weather, and demanding service conditions, making it ideal for outdoor or corrosive settings.

Q: When and where should this breather valve be installed?

A: This valve is designed for installation on vertical pipelines of storage tanks or vessels handling air, vapours, or combustible gases in locations where safe venting to a remote area (pipe away) is needed. Typical applications include chemical plants, refineries, and pharma industries requiring explosion protection and proper tank breathing.

Q: What is the maintenance process for the breather valve cum flame arrester?

A: Routine maintenance is made simple as the valve allows for inspection and servicing of internal parts without line removal. Periodic checks involve examining the flame arrester element, seals, and vent ports for cleanliness and integrity, ensuring safe and efficient operation over time.

Q: What are the available sizes and connection standards for this product?

A: The valve supports end connections from 2 to 12 inches (DN50 to DN300) and can be supplied with flanged ends as per ANSI or DIN standards. Custom sizes and connections are also available upon request to suit specific installation needs.

Q: Which benefits does the integral flame arrester offer compared to separate installations?

A: By combining the flame arrester and breather valve into a single, compact unit, installation complexity and space requirements are reduced. This integrated solution improves safety, minimizes pressure drop, and offers cost advantages while ensuring both pressure/vacuum relief and flame protection.
